Gantry Machining Centers vs. Vertical Machining Centers: Key Differences
Gantry machining centers and vertical machining centers are two common types of CNC machine tools, differing in structure, functionality, and application.
Structural Differences
A gantry machining center is a large-scale CNC machine tool characterized by a long crossbeam and two vertical-axis milling units. The crossbeam moves along dual guideways, enabling the worktable to achieve motion along the X and Y axes. This robust structure is ideal for machining large components, such as automotive body panels, aircraft fuselages, and heavy industrial parts.

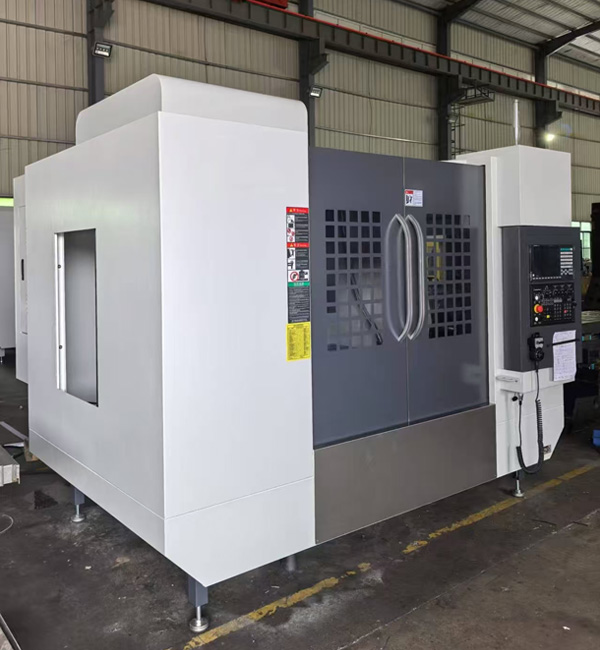

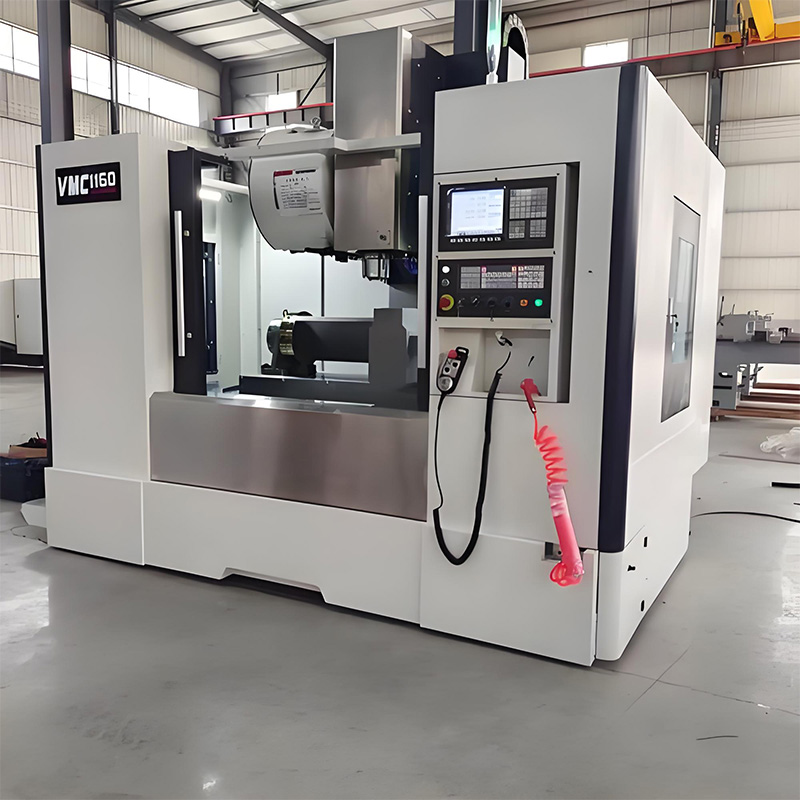

In contrast, a vertical machining center is a compact CNC machine tool typically featuring a single vertical spindle and horizontal worktable movement. While its worktable also moves along the X and Y axes, its smaller footprint makes it suitable for precision machining of smaller components like molds, gears, and hydraulic parts.
Functional Differences
Gantry machining centers excel in large-scale operations due to their expansive workspace and extended machining range. They perform heavy-duty milling, drilling, and cutting tasks and are often equipped with automatic tool changers (ATCs) to enhance productivity.
Vertical machining centers prioritize space efficiency and flexibility. Their compact design allows rapid workpiece clamping and positioning, making them ideal for high-precision small-part machining. They are also easier to operate and maintain.
Application Differences
Gantry machining centers dominate industries requiring large-part manufacturing, such as automotive, aerospace, and energy sectors. Typical applications include automotive body cutting/welding and aerospace engine component machining.
Vertical machining centers specialize in small, precision-critical parts like molds, gears, and hydraulic components. Their accuracy in drilling, milling, and cutting meets the stringent demands of these applications.
Conclusion
Gantry and vertical machining centers serve distinct roles: gantry types handle large components with their expansive workspace, while vertical types optimize precision for smaller parts with compact flexibility. Selecting the appropriate machine depends on part specifications and processing requirements.
