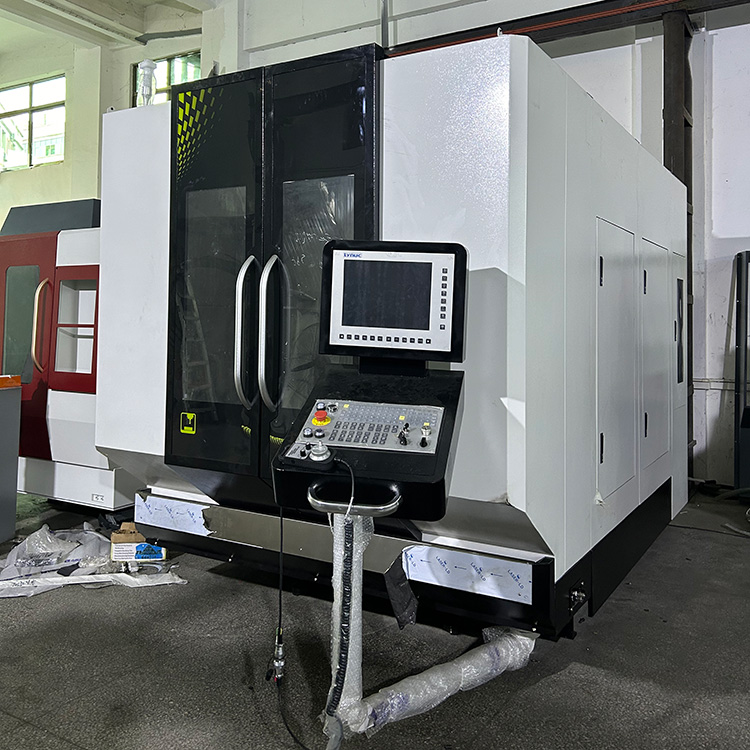

Product Description
| Project | Name | Parameter | Unit | |||
|
Staging |
Bed dimension | 500 | mm | |||
| Workbench swing Angle (A axis) | ±120 | ° | ||||
| Worktable rotation Angle (C axis) | 360 | ° | ||||
| Worktable swing speed (A axis) | 100（最高200） | rpm | ||||
| 工Worktable rotation speed (C axis) | 100（最高200） | rpm | ||||
| Maximum load allowed | 500 | kg | ||||
|
Range of work |
Maximum ski saddle travel-X axis | 650 | mm | |||
| Maximum beam travel-Y axis | 800 | mm | ||||
| Maximum spindle travel-Z axis | 450 | mm | ||||
| The end face of the spindle to the disk surface | Most | 570 | mm | |||
| Least | 120 | mm | ||||
| Principal axis | Axis specifications | HSK-A63 | ||||
| Range of revolution | 0~20000 | r/min | ||||
| Main shaft motor power | 20 | Kw | ||||
| Feed | Quick travel | X/Y/Z轴x-axis | 36 | m/min | ||
| Three axis motor power (X/Y/Z) | 3 | kw | ||||
| Feed speed (X/Y/Z) | 15 | m/min | ||||
|
ATC |
Axis specifications | HSK-A63 | ||||
| Knife selection method | Bidirectional nearest choice | |||||
| ATC quantity | 32 | 把 | ||||
| Maximum tool length | 300 | mm | ||||
| Maximum tool weight | 8 | kg | ||||
| The biggest cutter | Full of knives | Φ70 | mm | |||
| Adjacent hollow knife | Φ120 | mm | ||||
| Knife changing time T-T | 2 | s | ||||
| Positioning accuracy | X/Y/Z axle | ±0.005 | mm | |||
| A axle/C axle | ±5 | 秒 | ||||
| Repeat positioning accuracy | X/Y/Z axle | ±0.005 | mm | |||
| A axle/C axle | <4 | 秒 | ||||
| Machine weight is about | 13000 | Kg | ||||
| Total electrical capacity | 35 | KVA | ||||
| Machine size | 2800×3600×3600 | mm | ||||
| 1 | Syntec220MA-5 system | 10 | Oil pump |
| 2 | Five-axis DD cradle turntable | 11 | Axis specifications HSK-A63 |
| 3 | Electric spindle 20000rpm | 12 | Chain chip removal |
| 4 | PMI lead screw | 13 | Online testing |
| 5 | Rexroth lead rail | 14 | Internal and external protection |
| 6 | Three axis yaskawa Servo drive, motor | 15 | Air conditioning in electrical cabinets |
| 7 | 32 knives | 16 | Five-axis DD Water cooling system |
| 8 | Foundation pad iron and adjustment bolt | 17 | LED Lighting work lamp |
| 9 | Knife tester | 18 |
