Product Description

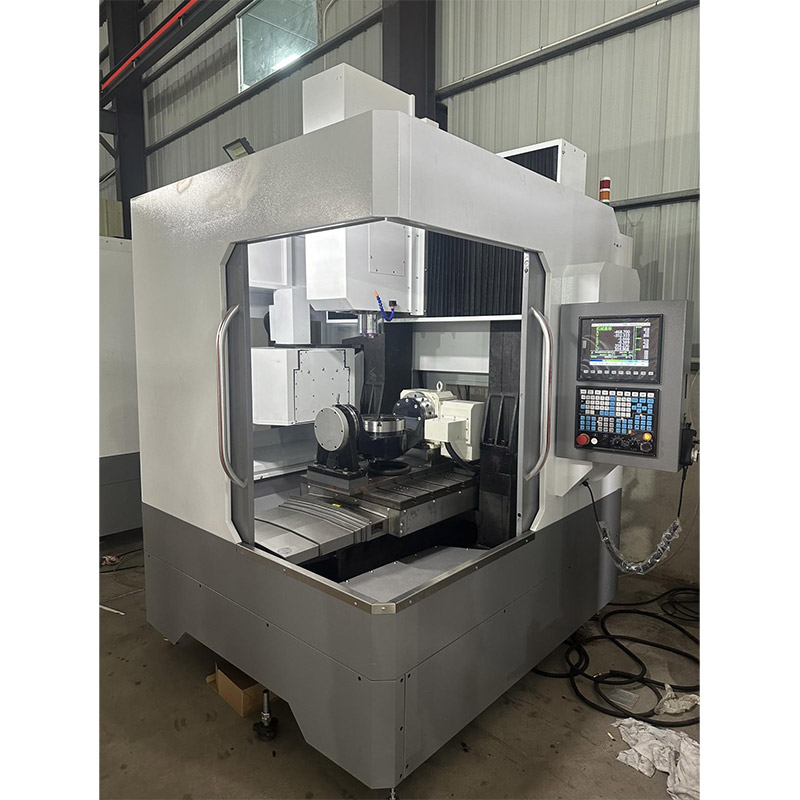

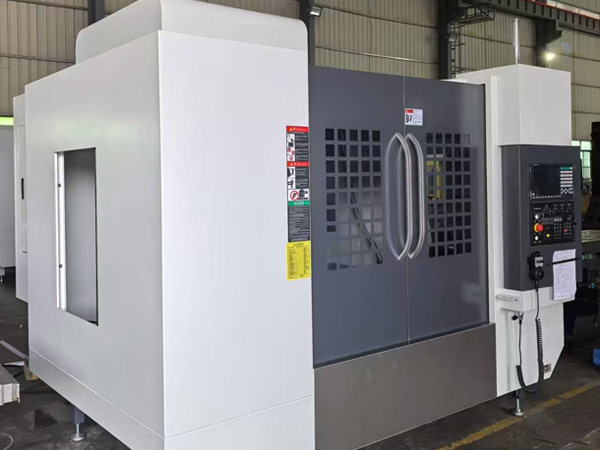

| UT400 five-axis (RTCP) machining center | |||||
| 一、Standard configuration of the host, main outsourced list | |||||
| No. | Name | Manufacturer | Brand name | ||
| 1 | Controller | 宝元LNC | Taiwan | ||
| 2 | Drive, motor | 众辰ZONCN | Shanghai | ||
| 3 | Principal axis | 丹铨/华雕 | Taiwan/Jiangsu | ||
| 4 | X /Y /Zball screw | 台湾精密3210 | Taiwan | ||
| 5 | Lead rail | 台湾精密30 | Taiwan | ||
| 7 | ATC | HG | Dongguan | ||
| 8 | 五轴转台 | 辰和/兆奕凸轮 | China/Taiwan | ||
| 二、Rating of machine | |||||
| Project | UT400 | ||||
|
Revolving stage |
Bed dimension | 260 | |||
| Maximum load 0° | 100KG | ||||
| Maximum load 90° | 75KG | ||||
| The diameter of the hole | Ф60H7 | ||||
| Diameter of central hole | Ф45H7 | ||||
| Height of the working table | 247 | ||||
| Workbench T-slot width | 12H8 | ||||
| Gear ratio | Sloping shaft | Axis of rotation | |||
| 1：36 | 1：36 | ||||
| Accuracy of segmentation | 40″ | 25″ | |||
| Repeatability precision | 8″ | 4″ | |||
| Brake lock force | 1160N-M | 350N-M | |||
| Minimum set unit | 0.001° | ||||
| Can be tilted | -30~120° | ||||
|
Feed |
Quick travel | X/Y/Z axle | 30m/min | ||
| Maximum speed of five axes | 83rpm | ||||
| X/Y axis travel | 650*650mm | ||||
| The nose end of the spindle is 420mm away from the disk surface | |||||
| mm/min Cutting feed rate | 10000 | ||||
|
Principal axis |
Principal axis speed | 12000rpm | |||
| Main shaft power | 5.5kw | ||||
| Taper hole of spindle | BT40 | ||||
| The distance between the plate and the main shaft end face is | The maximum is 420mm | ||||
|
A T C |
Knife library capacity | 14 | |||
| Axis specifications | BT40 | ||||
| Maximum drilling diameter | Ф10mm | ||||
| Maximum thread diameter | M6mm | ||||
| Maximum tool diameter | Ф60mm | ||||
| Repeat positioning accuracy | ±0.005mm | ||||
| Pressure | 6kgf/cm2 | ||||
| Maximum power | 16KW | ||||
| Machine size Length * width * height (mm) | 2000*2000*2550 | ||||
| Weight is approximately | 3700kg | ||||
