Product Description

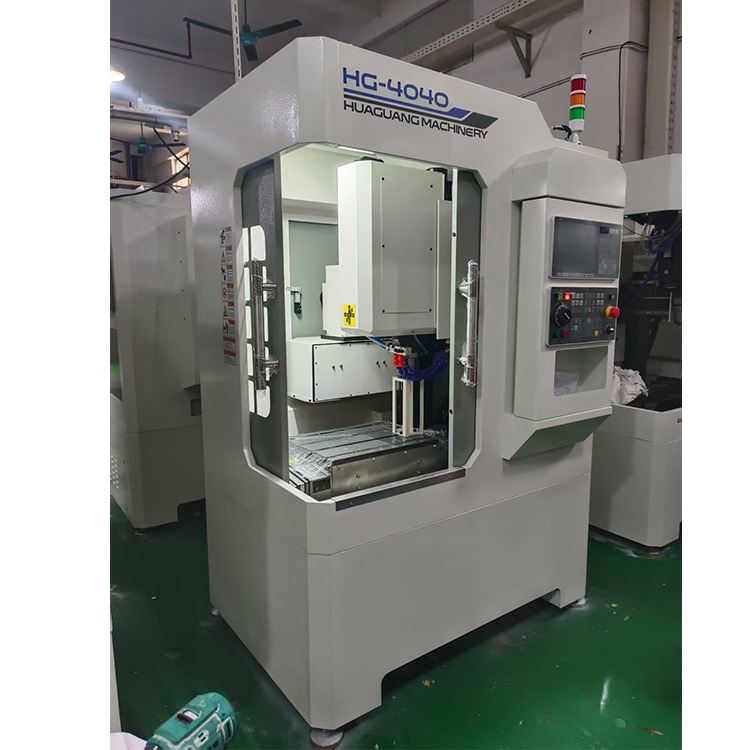

4040 machining center
(standard with 6 tool banks)
| Spindle | Maximum speed | System configuration | Selling price (including tax) | Notes |
| 3.0KW | 6000 | 广州科源亚数 | 43 thousand | pulse |
| The above models all support tooth tapping | ||||
4040B machining center
(standard with 8 bamboo hat knife magazines)
| Spindle | Maximum speed | System configuration | Selling price (including tax) | Notes |
| 3.0KW | 6000 | 广州科源亚数 | 45 thousand | pulse |
| 华中 | 48 thousand | absolute value | ||
| 3.0KW | 9000 | 广州科源亚数 | 48 thousand | pulse |
| 华中 | 51 thousand | absolute value | ||
| The above models support tooth tapping
|
||||
4040D Drill Attack Center
(comes standard with 8 bamboo hat knife magazines)
| Servo electric spindle | Maximum speed | system configuration | Selling price (including tax) | Notes |
| 4.5KW
(Support Attack Teeth) |
24000 | 华中 | 57 thousand | absolute value
Oil distribution cooler |
Four axis turntable 18000 yuan (excluding chuck and tailstock)
The above quotation includes tax but does not include shipping costs.
The machine tool does not include accessories such as tool holders.
| No. | Product name | Manufacturer | Country of origin |
| 1 | controller | 广州科源亚数/华中 | Foshan/Wuhan |
| 2 | X. Y, Z three-axis drive, motor | The system comes with built-in | Foshan/Wuhan |
| 6 | Spindle servo motor | The system comes with built-in | Foshan/Wuhan |
| 3 | main shaft | 力川/荣华 | Dongguan/Jiangsu |
| 4 | X. Y, Z ball screw | 台湾精密 P 级 | Taiwan |
| 5 | rail | 台湾精密 C3 级 | Taiwan |
| 7 | magazine | HG | Dongguang |
二、Mechanical specifications
| Project | 4040
(Mechanical spindle) |
4040B
(Mechanical spindle) |
4040D
(Motor spindle) |
||
| workbenches | Workbench size(W*L) mm | 500*400 | 500*400 | 500*400 | |
| Max load | 200 KG | 200 KG | 200 KG | ||
| Main shaft | Spindle speed | Maximum speed：6000 转 | Maximum speed： 9000 转 | Maximum speed： 24000 转 | |
| Spindle power | 1.5KW/3.0kw | 3.0kw | 4.5kw | ||
| Spindle taper hole | BT30 | BT30 | BT30 | ||
| Distance from workbench to spindle end face mm | minimum 150
highest 350 |
minimum 150
highest 350 |
minimum 150
highest 350 |
||
| X/Y/Z axis guide rail/screw | 25/26 | 25/26 | 25/26 | ||
| 进 给 |
Quick movement |
X axis m/min | 30 | 30 | 30 |
| Y axis m/min | 30 | 30 | 30 | ||
| z axis m/min | 25 | 25 | 25 | ||
|
trip |
X axis mm | 400 | 400 | 400 | |
| Y axis mm | 500 | 500 | 500 | ||
| z axis mm | 200（From workbench to spindle end face Minimum190，Highest390） | ||||
| feed rate mm/min | 10000 | 10000 | 10000 | ||
|
A T C |
Tool magazine | 6 rows of knives/8 bamboo hat knife storage | 8 bamboo hat knife storage | 8 bamboo hat knife storage | |
| Knife handle type | BT30 | BT30 | BT30 | ||
| Maximum drilling diameter mm | aluminiumФ15 /steelФ10 | aluminiumФ15 /steelФ10 | Servo
Electric spindle |
||
| Maximum tapping diameter mm | steel M10 | steel M8 | M8 aluminium | ||
| Maximum milling cutter diameter mm | Ф63 | Ф63 | Ф50 | ||
| Repeatability mm | ±0.01 | ±0.01 | ±0.01 | ||
| Barometric pressure kgf/cm2 | 5 | 5 | 5 | ||
| Maximum power KW | 6 | 7 | 8 | ||
| MACHINE SIZE L*W*H(mm) | 1350*1350*2050 | 1350*1350*2050 | 1350*1350*2050 | ||
| Weight | 1900 KG | 1900 KG | 1900 KG | ||
