Product Description

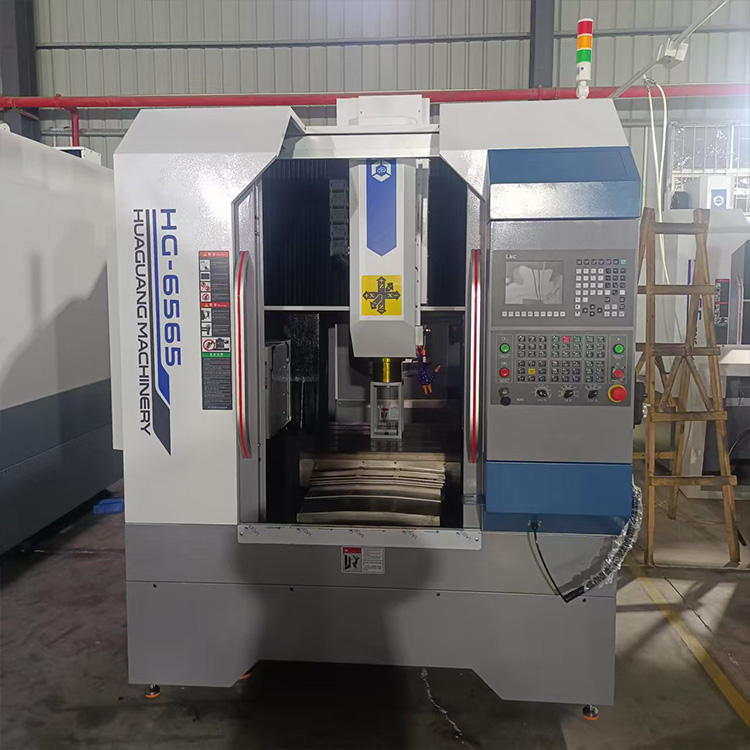

6565 gantry machining center (standard 14 station servo tool magazine)
Workbench size: 665 * 665, machining stroke: 650 * 650 * 350 high
| Spindle servo motor | Maximum speed | X/Y lead screw | System configuration | Selling price (including tax) | Notes |
| 5.5KW | 6000 | 3210 | 宝元 | 68 thousand |
absolute value |
| 7.5KW | 6000 | 4010 | 宝元 | 72 thousand | |
| 7.5KW | 8000 | 3210 | 宝元 | 76 thousand | |
| 8000 | 4010 | 宝元 | 78 thousand | ||
| 20 kg spindle center water outlet, additional 10000 yuan per unit. | |||||
| 5.5KW | 12000 | 3210 | 宝元 | 81 thousand | absolute value |
6665D Longmen Drilling and Attacking Center
(equipped with 16 station servo tool magazine as standard)
| Servo electric spindle | Maximum speed | X/Y/Z lead screw | System configuration | Selling price (including tax) | Notes |
| 7.5KW | 24000 | 3210 | 宝元 | 79 thousand | absolute value |
Domestic four axis 170 turntable with an additional 18000 yuan (excluding chuck and tailstock)
The above quotation includes tax but does not include shipping costs. The machine tool does not include accessories such as tool holders, and a one-year warranty for replacement parts is provided.
二、 Host standard configuration, main external purchase list
| No. | Product name | Manufacturer | Country of origin |
| 1 | controller | 宝元 | Taiwan |
| 2 | drive, motor | 众辰/伟创 | Shanghai/Dongguan |
| 4 | main shaft | 华创/华雕 | Dongguan/Jiangsu |
| 5 | X. Y, Z ball screw | 台湾精密C3级 直径 32 | Taiwan |
| 6 | 6565 Roller guide rail/ 6565D Ball guide | 台湾精密P级 型号 30 | Taiwan |
| 7 | magazine | HG | Dongguang |
三、Mechanical specifications
| Project | 6565
(Mechanical spindle) |
6565D
(Motor spindle) |
||
|
Workbench |
Workbench size(W*L)mm | 665*665 | 665*665 | |
| Max load | 500 KG | 500 KG | ||
|
Main shaft |
Spindle speed | 6000 、8000 、12000 | Maximum speed: 24000 转 | |
| Spindle power | 5.5kw/7.5kw | 7.5kw | ||
| Spindle taper hole | BT40 | BT30 | ||
| Distance from workbench to spindle end face mm | Minimum 150 Highest 450 | Minimum 150 ighest 450 | ||
| X/Y/Z axis guide rail/screw | 30/32 | 30/32 | ||
|
Feed |
Quick movement |
X axis m/min | 30 | 30 |
| Y axis m/min | 30 | 30 | ||
| Z axis m/min | 25 | 25 | ||
|
Trip |
X axis mm | 650 | 650 | |
| Y axis mm | 650 | 650 | ||
| Z axis mm | 350（The workbench is far from the spindle end face Minimum 150，Highest 450） | |||
| Feed rate mm/min | 10000 | 10000 | ||
|
ATC |
tool magazine | 14 station servo tool magazine | 16 station servo tool magazine | |
| knife handle type | BT40 | BT30 | ||
| Maximum drilling diameter mm | Ф40 | Servo electric spindle | ||
| Maximum tapping diameter mm | Aluminium M20/ M16 Steel | Aluminium M10/ Steel M6 | ||
| Maximum milling cutter diameter mm | Ф80 | Ф50 | ||
| Repeatability mm | ±0.005 | ±0.005 | ||
| Barometric pressure kgf/cm2 | 5 | 5 | ||
| Maximum power KW | 10 | 14 | ||
| MACHINE SIZE L*W*H(mm) | 2000*1900*2500 | 2000*1900*2500 | ||
| Machine weight approximately | 3200 KG | 3200 KG | ||
