Product Description

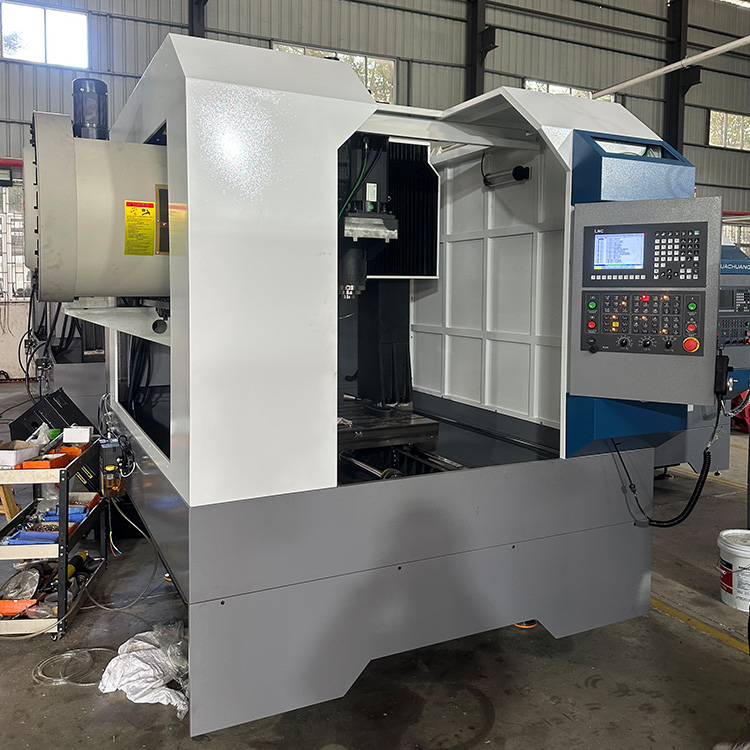

8080 gantry machining center (standard 14 station servo tool magazine)
Workbench size: 800 * 800, machining stroke: 800 * 800 * 500 high
| Spindle servo motor | Maximum speed | X/Y/Z lead screw | System configuration | Price | Notes |
| 7.5KW | 6000 | 4010 | 宝元 | 98 thousand | 20 kg spindle center water outlet, additional 10000 yuan/unit |
| 7.5KW | 8000 | 4010 | 宝元 | 101 thousand | |
| 7.5KW | 12000 | 4010 | 宝元 | 112 thousand |
8080 Longmen Machining Center (equipped with 24 disc tool magazine as standard)
| Spindle | Rotational speed | X/Y/Z lead screw | system configuration | Price | Notes |
| 11KW | 皮带6000 | 4010 | 宝元 | 122 thousand |
Standard configuration: Chassis flushing |
| 11KW | 皮带8000 | 4010 | 宝元 | 125 thousand | |
| 5.5KW | 直联12000 | 4010 | 宝元 | 132 thousand |
8080D drilling center (standard 14 station servo tool magazine)
| Servo electric spindle | Maximum speed | X/Y/Z lead screw | system configuration | Price | Notes |
| 7.5KW | 24000 | 4010 | 宝元 | 109 thousand | absolute value |
Domestic four axis 170 turntable with an additional 18000 yuan (excluding chuck and tailstock)
The above quotation includes tax but does not include shipping costs. The machine tool does not include accessories such as tool holders, and a one-year warranty for replacement parts is provided.
An additional 5000 yuan per unit is required for on-site installation and adjustment, as well as one-year on-site service.
| Project | 8080（Mechanical spindle） | 8080D（motor spindle） | Notes | ||
| control system | 宝元 | Taiwan | |||
| motor drive | 众辰 | Shanghai | |||
|
Workbenches |
Workbench size（W*L)mm | 800*800 | 800*800 | ||
| Max load | 600 KG | 600 KG | |||
|
Main shaft |
Spindle speed | Maximum speed:6000 转 | Maximum speed:24000 转 | HG/Ronghua | |
| Spindle power KW | 7.5 | 7.5 | Shanghai | ||
| Spindle taper hole | BT40 | BT30 | |||
| Distance from workbench to spindle end face mm 约 | minimum 150 highest 650 | ||||
| X. Y, Z ball screw | 40*10 | 40*10 | Taiwan C3 level | ||
| Three axis guide rail | 35 pin roller | 35ball bearing | Taiwan P level | ||
|
Feed |
Quick movement | X axis m/min | 30 | 30 | |
| Y axis m/min | 30 | 30 | |||
| Z axis m/min | 25 | 25 | |||
|
trip |
X axis mm | 800 | 800 | ||
| Y axis mm | 800 | 800 | |||
| Z axis mm | 500 | 500 | |||
| Feed rate mm/min | 10000 | 10000 | |||
| positioning accuracy mm | 0.008 | 0.008 | |||
|
ATC |
tool magazine | 14 station servo tool magazine | 16 station servo tool magazine | ||
| Knife handle type | BT40 | BT30 | |||
| Maximum drilling diameter mm | Ф60 | Servo electric spindle | |||
| Maximum tapping diameter mm | M24 | aluminium M10 / steel M8 | |||
| Maximum milling cutter diameter mm | Ф80 | Ф50 | |||
| Barometric pressure kgf/cm2 | 5 | 5 | |||
| Maximum power KW | 14 | 14 | |||
| MACHINE SIZE L*W*H（mm） | 2300*2300*2700 | 2300*2300*2700 | |||
| WeightWeight | 约 5200 KG | 约5200 KG | |||
