Product Description
一、Standard configuration of the host, main outsourced list
| No. | Name | Manufacturer | Brand name |
| 1 | Controller | 宝元/新代 LNC/syntec | Taiwan |
| 2 | Lead rail | 台湾精密 P 级 直径 32 | Taiwan |
| 3 | X /Y /Zball screw | 台湾精密 C3 级 型号 30 | Taiwan |
| 4 | Principal axis | HG | Dongguan |
| 5 | ATC | HG | Dongguan |
| 6 | Bearing | IBC | Germany |
二、Rating of machine

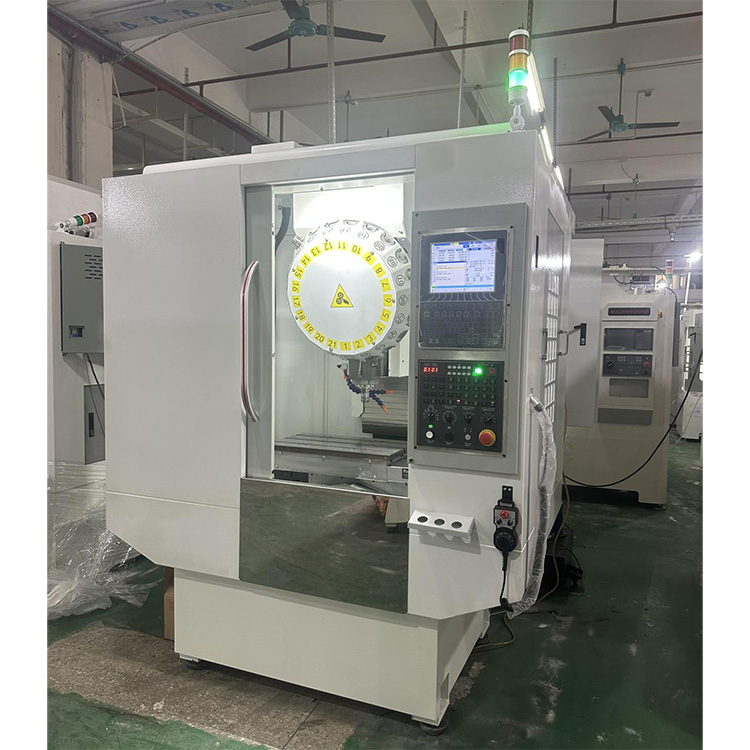

| Project | T6S | |
| Finish size | 600*400*300mm | |
| Staging | Bed dimension(L * W) | 700*420mm |
| Maximum load | 300 KG | |
|
Axis |
Cutting feed rate | 5-10000mm/min |
| Main shaft power | 5.5kw | |
| Main shaft speed | 20000RPM | |
| Taper hole of spindle | BT30 | |
| Distance from the work surface to the end face of the spindle | 150~450mm | |
| Distance from the center of the spindle to the column | 445mm | |
| Feed | X/Y/Z quick move | 48m/min |
|
ATC |
Knife library capacity | 21把 |
| Knife changing time (Adjacent cutting tools) | 1.6秒 | |
| Maximum drilling diameter | aluminium铝Ф12mm | |
| Maximum thread diameter | aluminium铝M10mm | |
| Maximum tool diameter | Ф63mm | |
| Positioning accuracy | ±0.005/300 mm | |
| Repeat positioning accuracy | ±0.005/300mm | |
| Air pressure | 6kgf/cm2 | |
| Maximum power | 15KW | |
| Machine size Length * width * height (mm) | 1700*2000*2500(mm) | |
| Weight is approximately | 3200 KG | |
