Product Description

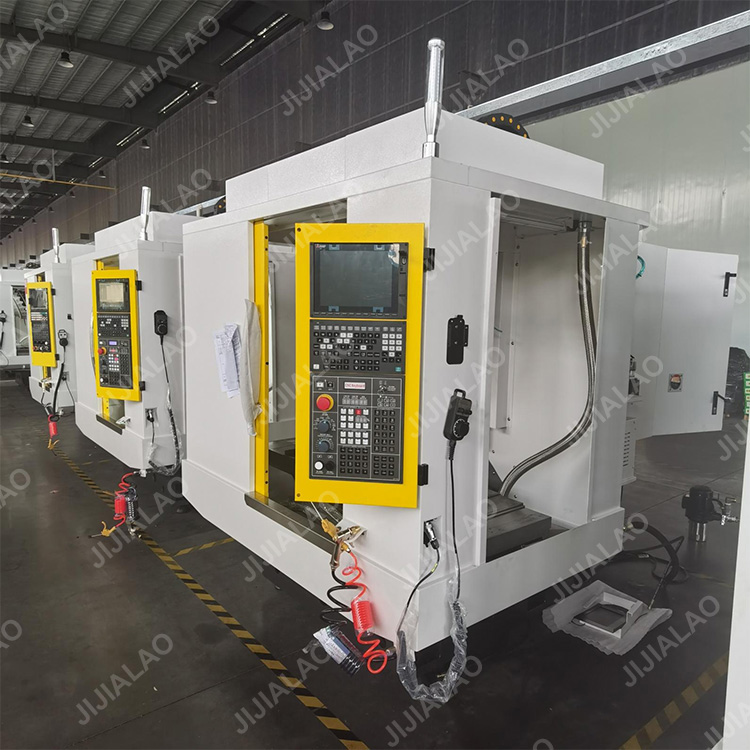

Technical parameters of T745 series
| Name | Specifications | Parameter | Unit | |
| Staging | Bed dimension(L * W) | 800×420 | mm | |
| Maximum load | 300 | kg | ||
| T-slot size | 3-14-125 | mm | ||
| Processing schedule
|
Processing schedule X-axis | 700 | mm | |
| Processing schedule Y-axis | 450 | mm | ||
| Processing schedule Z-axis | 350 | mm | ||
| Distance from the end face of the spindle to the working table | Most | 495 | mm | |
| Least | 145 | mm | ||
| The distance from the center of the spindle to the Z-axis guide surface | 480 | mm | ||
| Feed | X/Y/Z axis fast move speed | 48/48/48 | m/min | |
| Feed rate | 1-10000 | mm/min | ||
| Motor | Main shaft motor | 7.5 | Kw | |
| Axis | Axis specifications | BT30-100 | ||
| Driving mode | Direct-type | r/min | ||
| Range of revolution | 20000 | r/min | ||
| ATC | ATC shape | Umbellate form | ||
| ATC quantity | 21 | 把 | ||
| Positioning accuracy | Accuracy detection criteria | JISB6336-4：2000/ GB/T18400.4-2010 | ||
| X/Y/Z axis positioning accuracy | 0.005/300 | mm | ||
| Repositioning accuracy of X/Y/Z axes | 0.003/300 | mm | ||
| Machine size (length x width x height) | 1900*2100*2700 | mm | ||
| Machine weight is about | 3800 | kg | ||
Equipment configuration model parameters
| No. | Name | Model | Brand |
| 1 | Iron casting | HT250 | Custom made |
| 2 | System | 22MA syntec | Syntec systems |
| 3 | Servo drive, motor | syntec | |
| 4 | Main shaft motor | 7.5KW | |
| 5 | Power of three-axis motor | 2.4-2.4-3.9（kw） | |
| 6 | X/Y/Z lead rail | X30/Y30/Z35mm | PMI/THK |
| 7 | Lead screw | Φ32X16 | PMI/THK |
| 8 | ATC | 21 | 北炬/德大 |
| 9 | Three axis bearing | 2562 | IBC |
| 10 | Pulley spindle | BT30-100-20000 | 睿莹OR |
| 11 | A knife changer | 4.5T | 主轴配套 |
| 12 | Chip removal | √ | China |
| 13 | Water box | √ | China |
| 14 | The outer casing | √ | China |
| 15 | Triaxial inner cover | √ | China |
| 16 | Oil pump | √ | China |
| 17 | Water pump | 750 | China |
| 18 | Electrical cabinet heat exchanger | √ | China |
| 19 | Tracheal components | √ | AirTAC |
